Code: MG3755409N

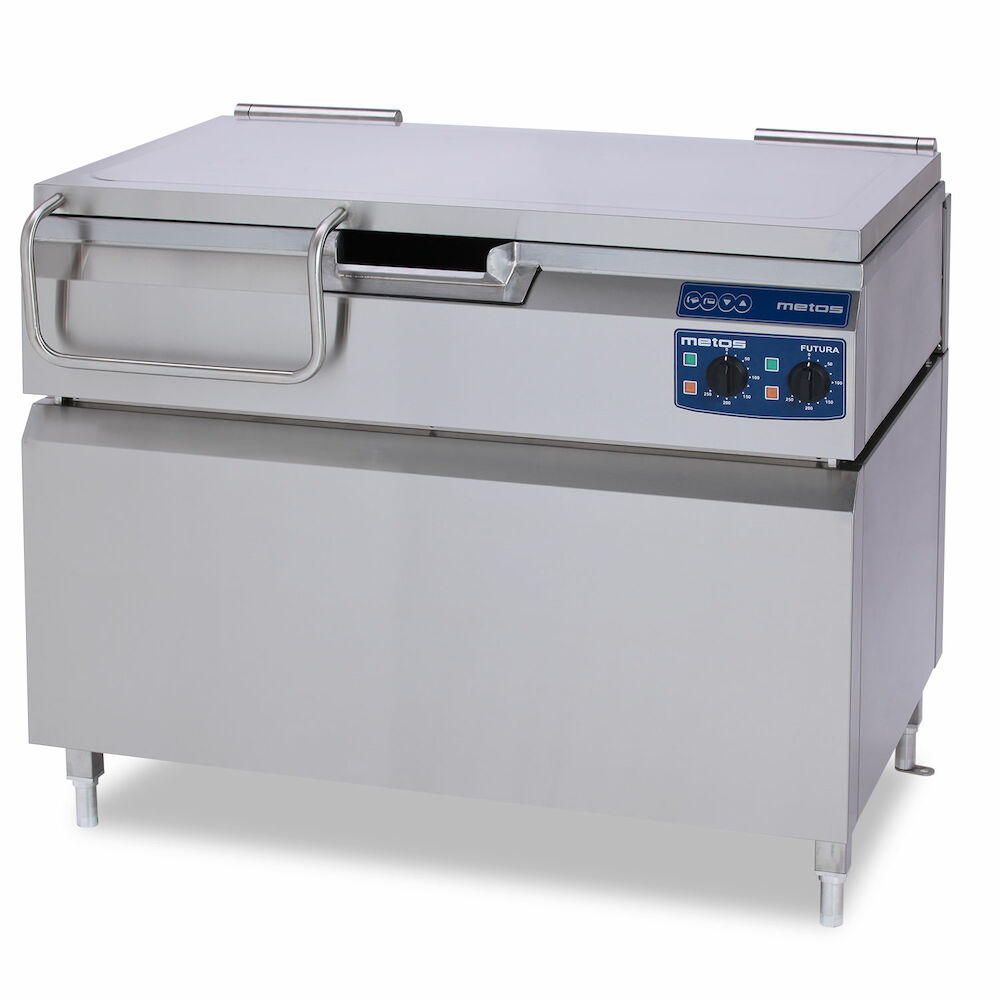

Bratt pan Metos Futura 110D (pan 1040x530x180mm)

The short preheating time and strong electrical tilting makes cooking with Metos Futura 110D bratt pan more ergonomic and effortless.

List price kr134,459.00 Promotion price kr126,392.00
On order
The short preheating time and strong electrical tilting makes cooking with Metos Futura 110D bratt pan more ergonomic and effortless.

D = frying zone 1040x530x180 mm.

The frying surface is made of thick steel which stores heat extremely well throughout the whole frying area. The frying surface has been divided into two frying zones that can be controlled separately. The temperature is adjustable between 0...+250°C. The heating time, to the set temperature, lasts for 5-6 minutes. The volume of the pan area is 100 liters. The bratt pan can also be used for stewing and boiling thanks to the 180 mm deep pan. The seamless surfaces and rounded corners make's the pan easy to clean.

Metos Futura 110D bratt pan has a strong electrical tilting, which makes emptying of the pan more ergonomic. Tilting cannot be started if the lid is closed or the water filling (option) is in progress. Manual tilting is available as a factory option. In addition, the bratt pan can be equipped with height adjustment function (factory option) and water filling tap (factory option). Height adjustment and water filling works by pressing a button.

- balanced lid
- stainless steel external surfaces and lid
- uniform stainless steel frying area
- electro mechanical control
- overheating protection

FACTORY OPTIONS (to be ordered together with the bratt pan):
- height adjustment 800-950 mm
- manual tilting
- water tap
General
Description Bratt pan Metos Futura 110D (pan 1040x530x180mm)
Dimensions and Capacity
Item width mm 1100
Item depth mm 806
Item height mm 954
Package volume 1.318 m3
Package dimensions (LxWxH) 122x90x120 cm
Net weight 195 kg
Package weight 225 kg
Technical information
Connection power kW 13.7
Fuse Size A 40
Connection voltage V 230
Number of phases 3PE
Frequency Hz 50/60
Startup current A 36
Protection rating (IP) X3
Type of electrical connection Fixed
Electrical conn. height mm 360
Features
Operation type electronical
Cleaning hand wash
Temperature area ºC 250C
Tilting electric
Temperature probe No
Oil filtering No
Timer No
Installation
Installation floor model
